Modular Door Hinge Routing Jig – 85mm & 100mm

Stop carrying bulky full-length hinge jigs.

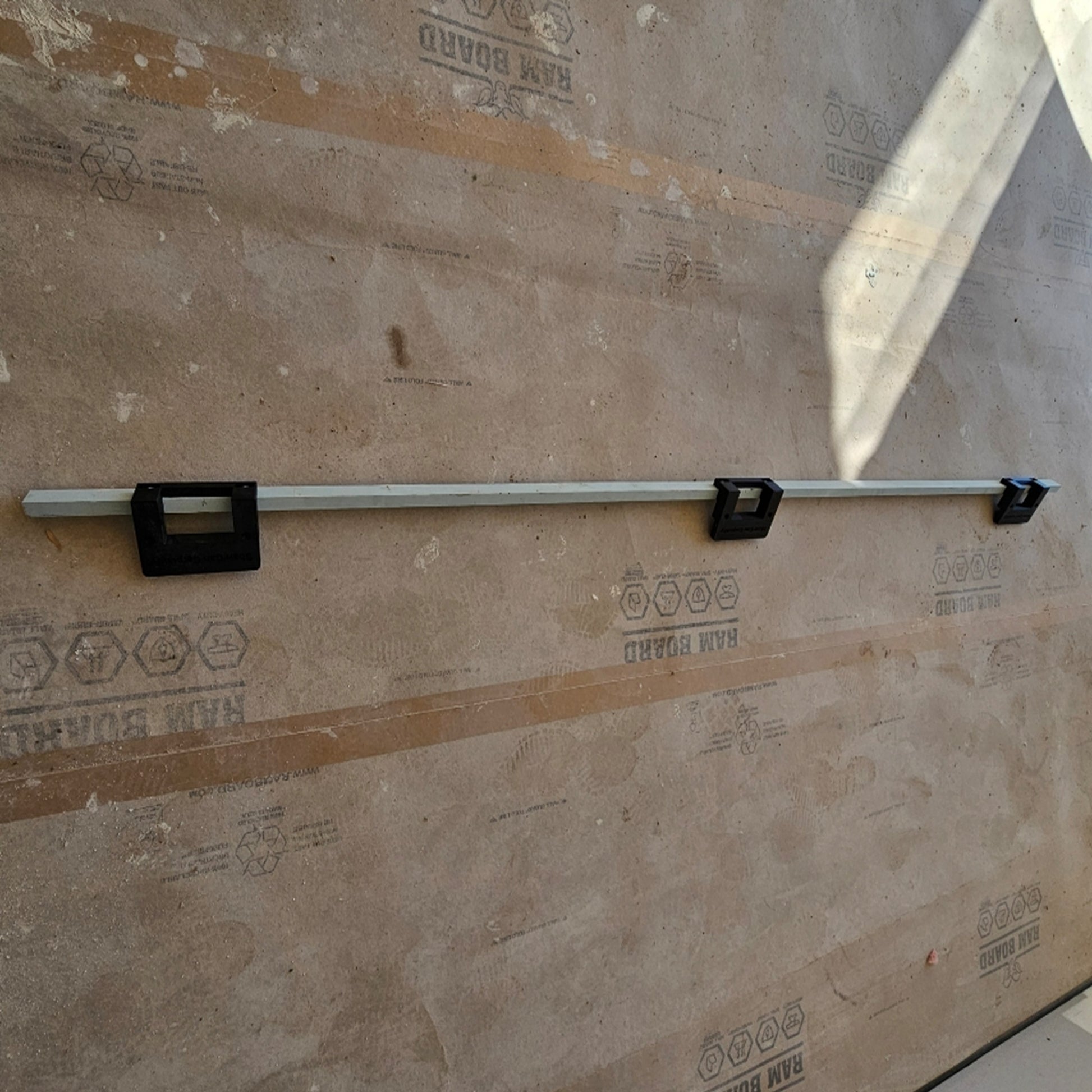

The Shaw Can Carpentry Modular Hinge Jig is designed to be compact, versatile and accurate. Instead of being permanently fixed to a long length, each jig simply screws onto a piece of 18mm timber (story rod). When you're finished, remove the screws and store the jigs in your toolbox—saving valuable space in your ute or workshop.

Available in 85mm and 100mm sizes.

Why You'll Love It

Compact Storage

Unlike traditional full-length hinge jigs, these jigs detach from the timber base when not in use. Simply unscrew them from your 18mm story rod and store the jigs themselves—no more trying to fit long, awkward templates into your vehicle.

One Jig for Any Door Height

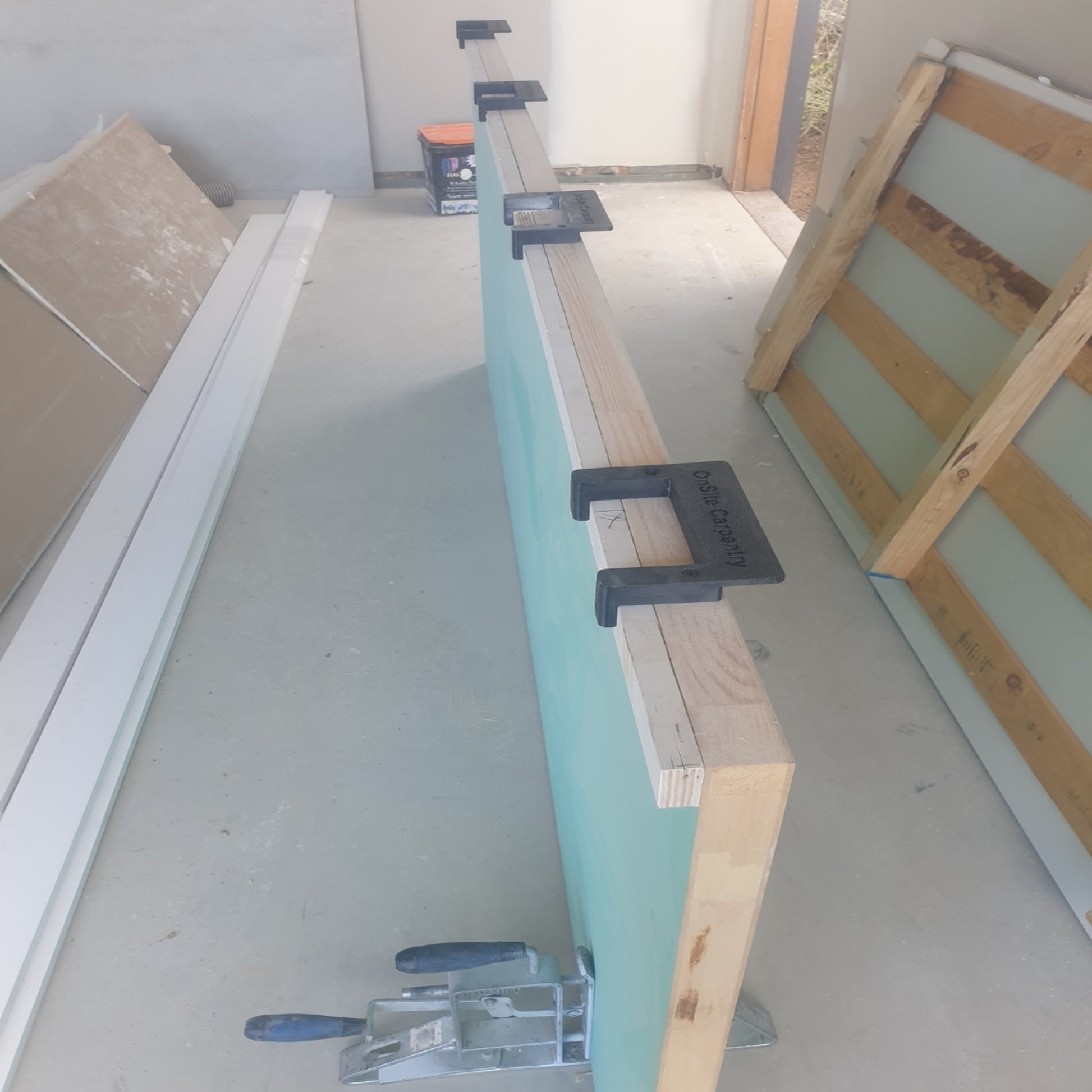

Position the jigs exactly where you need them on your story rod. Whether you're hanging a standard internal door or a custom-height door, you can space your hinges wherever required.

No fixed hinge locations.
No multiple door-length templates.
Just one system that works for virtually any door.

Route the Door and Jamb with Perfect Alignment

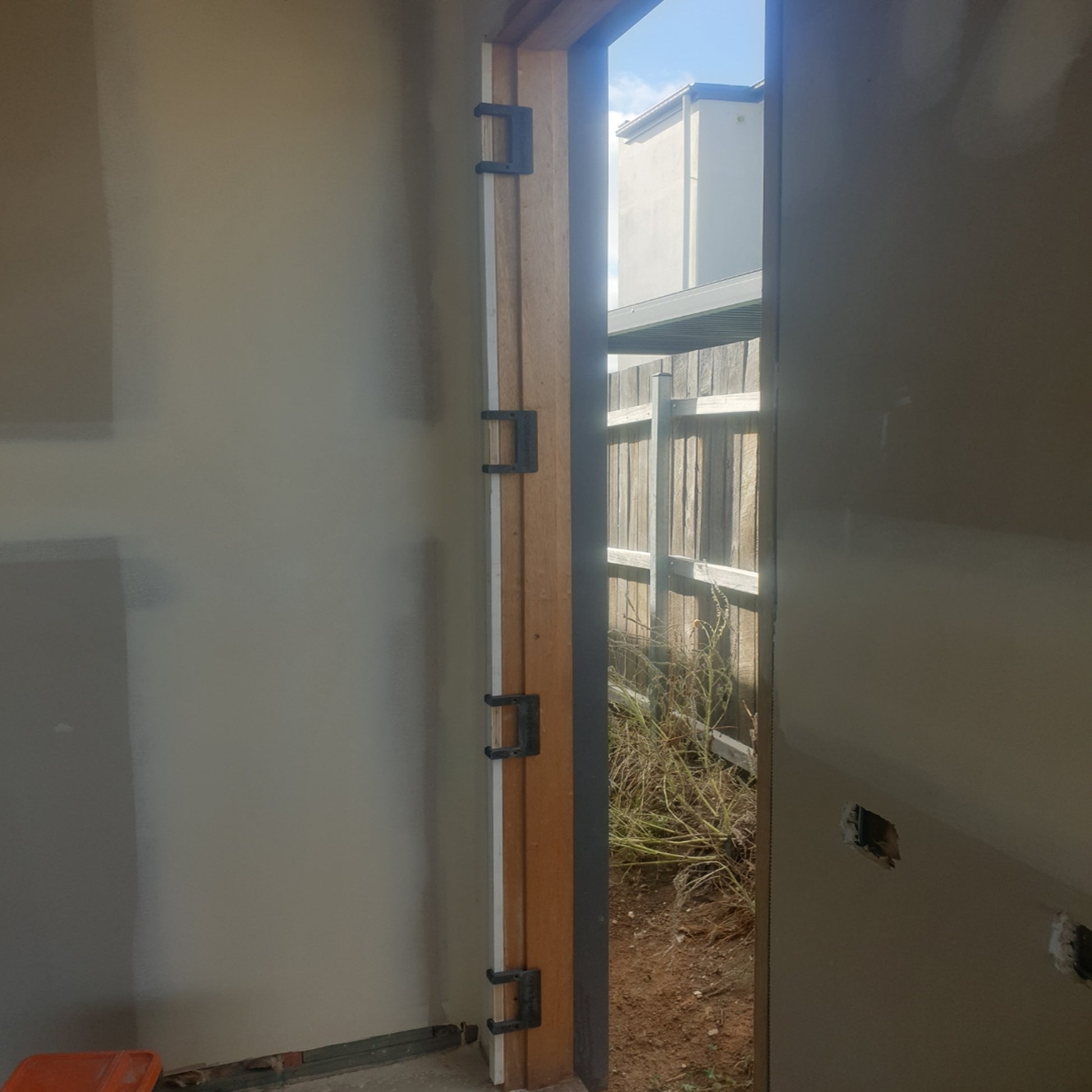

Once your jigs are attached to the story rod, route the door first, then transfer the same story rod to the jamb. Because the hinge positions never change, your door and jamb remain perfectly aligned without measuring every hinge individually.

Easy Micro Adjustments

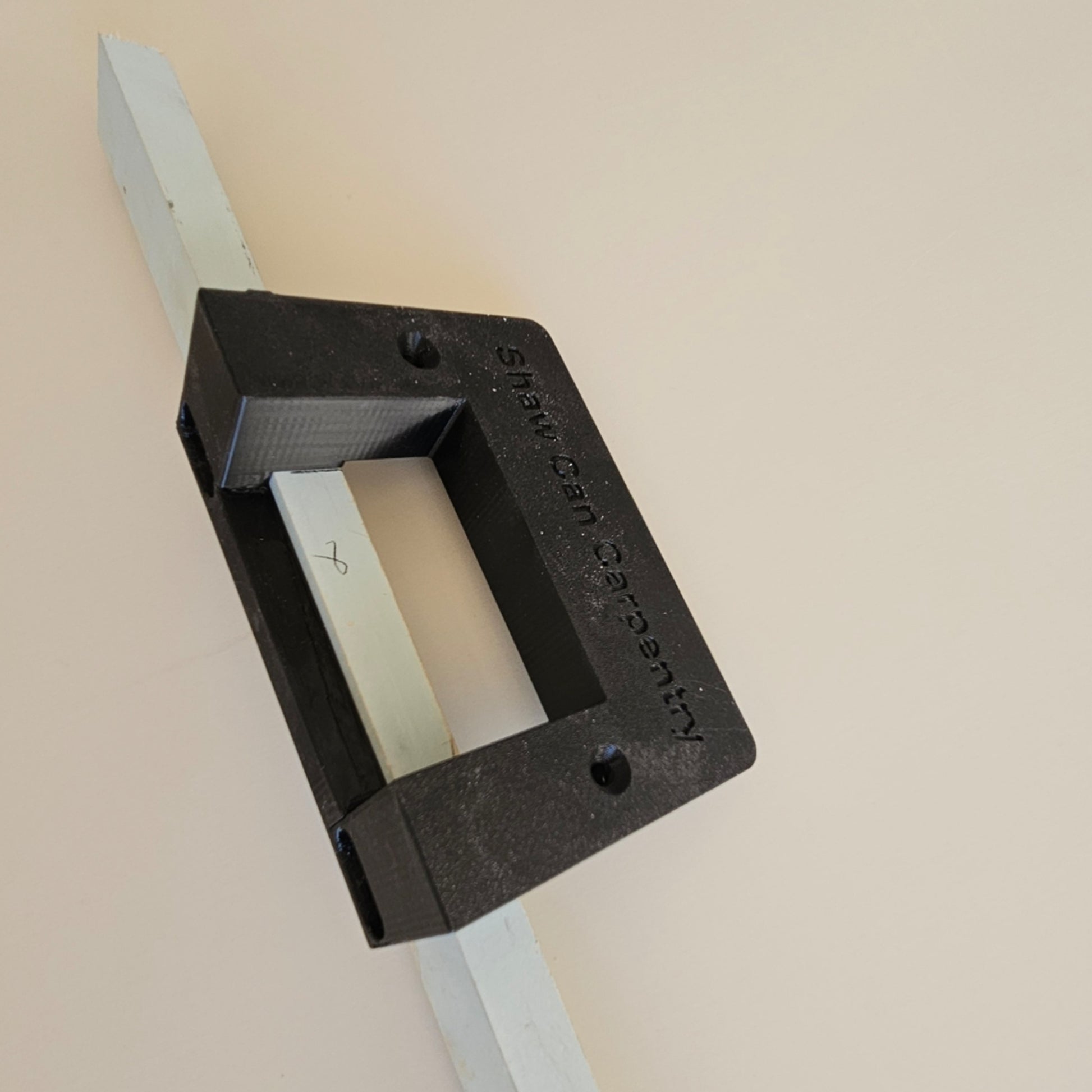

Long mounting slots make fine-tuning your hinge positions quick and simple. If a slight adjustment is needed, just loosen the screws, slide the jig to the desired position and retighten. This allows for precise micro adjustments without having to remove the jig or start your layout again, helping you achieve an accurate fit every time.

Works on Existing Installed Jambs

Need to cut a hinge into an existing jamb with an external door rebate or architraves already fitted?

Simply remove an individual jig from the story rod and use it by itself.

Built Around Readily Available Materials

The jig is designed to mount to a standard piece of 18mm timber, most skirting/ arc and door jamb sizes, making replacement story rods quick, inexpensive and easy to source.

Available Sizes

• 85mm Hinge Jig x 3 Jigs

• 100mm Hinge Jig x 3 Jigs

Select the size to suit your hinges before ordering.

Router Bit Requirements

Because the jig base is 18mm thick, a flush trim/template router bit with a cutting length of 12mm is recommended for correct operation.

What's Included

• 3 x Modular hinge jig(s) in your selected size.

Designed and manufactured in Australia by Shaw Can Carpentry.
