Door Hanging Jig Bundle – 85mm & 100mm Hinge Jigs, Latch Jig + TCT Router Bit

A complete system for faster, easier and more accurate hinge and latch routing.

The Complete Door Hanging Jig Bundle combines our 85mm Hinge Jig Set, 100mm Hinge Jig Set, Self-Centring Latch Jig and compatible TCT Template Router Bit into one complete setup for professional door installation.

Whether you're fitting internal or external doors, this bundle gives you both hinge sizes, our self-centring latch system and the bearing-guided router bit designed to work with every included jig.

What's Included

• 1 × 85mm Hinge Jig Set – 3 jigs

• 1 × 100mm Hinge Jig Set – 3 jigs

• 1 × Self-Centring Latch Jig

• Choice of 57.2mm × 25.2mm or 65.8mm × 26mm latch face template

• 1 × Shaw Can Carpentry TCT Template Router Bit

85mm & 100mm Hinge Jigs

Our modular hinge jig system is designed to make routing hinges fast, accurate and repeatable.

The templates attach to an 18mm timber story rod, allowing you to set your hinge positions once and transfer the exact same layout from the door to the jamb.

Rather than relying on a fixed-length jig, the modular design allows you to set the hinge spacing to suit different door heights and configurations.

Hinge Jig Features

• Includes both 85mm and 100mm hinge jig sets

• Route the door and jamb from the same setup

• Helps maintain accurate and consistent hinge alignment

• Adjustable positioning to suit different door heights

• Templates can be removed from the story rod for compact storage

• Designed to work over rebated external door jambs

• Individual templates can be used where access is restricted or architraves are already installed

• Built-in adjustment allows for fine-tuning hinge positions

Self-Centring Latch Jig

Not every 35mm or 40mm door is exactly the stated thickness. Fixed-width latch jigs can position the latch slightly off-centre, while adjustable jigs require measuring and resetting when changing between different door thicknesses.

Our Self-Centring Latch Jig automatically finds the centre of the door.

Simply fit it over the door edge, use the built-in centre-line notch to position your latch, secure the jig with clamps and route.

No measuring the door thickness. No setting the jig to 35mm or 40mm. No guessing the centre.

Latch Jig Features

• Self-centring design
• Suits 35mm and 40mm doors, including normal variations in actual door thickness
• No adjustment required when changing between door thicknesses
• Built-in centre-line notch for quick positioning
• Choice of 57.2mm × 25.2mm standard latch face template or 65.8mm × 26mm template to suit a Gainsborough Cavity Slider Latch Plate
• Interchangeable latch face system with additional sizes planned
• Custom latch face sizes may also be available—contact us if you require a specific size

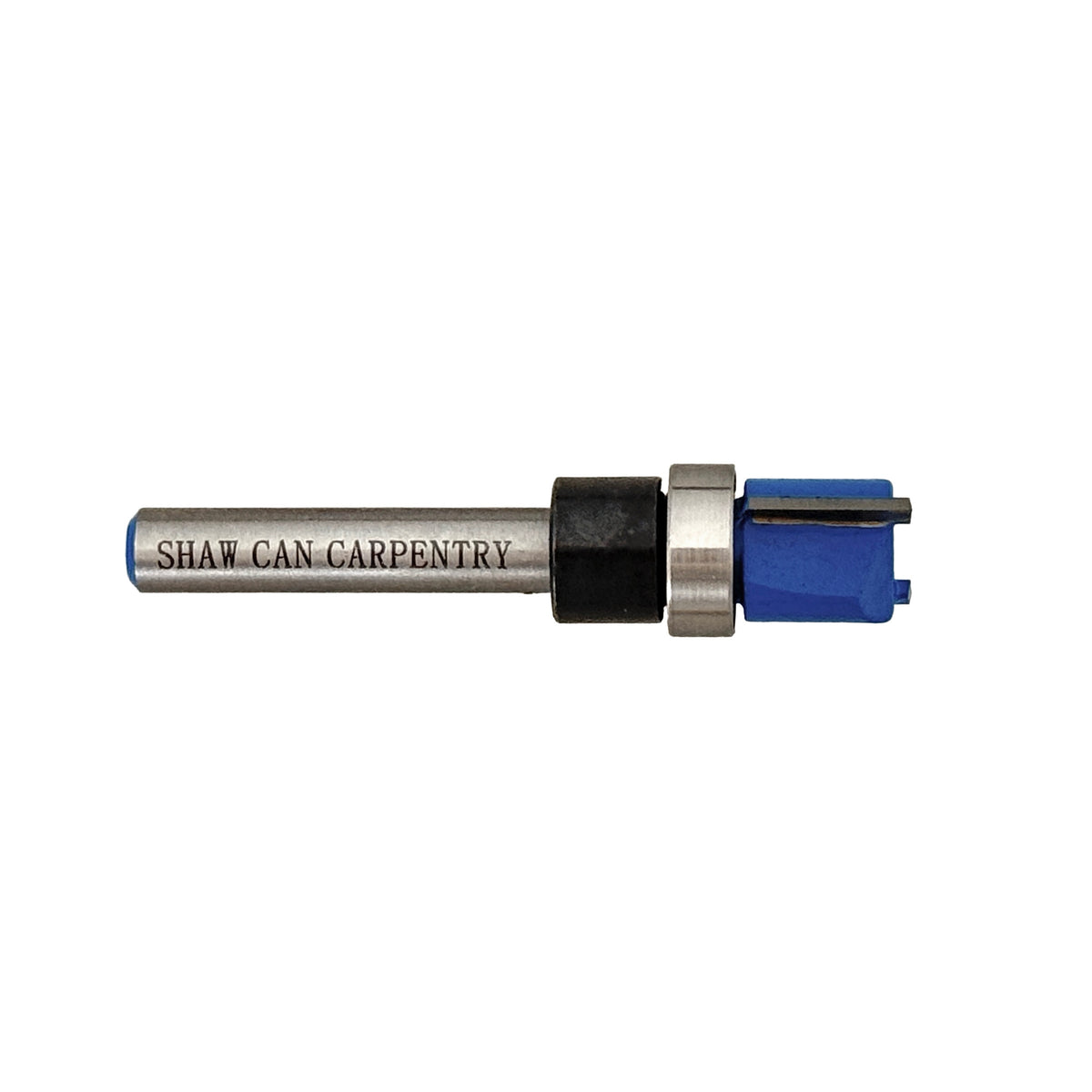

Included TCT Template Router Bit

The included Shaw Can Carpentry TCT Template Router Bit is designed to work with both the hinge and latch jig systems, allowing you to move between the included templates without changing cutters.

Its bearing-guided design follows the jig templates accurately, while the tungsten carbide tipped cutting edges provide clean, controlled routing of hinge and latch recesses.

Router Bit Specifications

• Tungsten carbide tipped (TCT) cutting edges
• 6.35mm (1/4") shank
• 12.7mm (1/2") cutting diameter
• 11.1mm cutting length
• Bearing-guided for accurate template routing
• Compatible with the included 85mm hinge, 100mm hinge and self-centring latch jigs

One Complete Door Hanging System

From routing the hinges to accurately centring the latch, this bundle provides the jigs and compatible router bit needed to make door installation quicker, more consistent and repeatable.

Buy the complete bundle and save $105 compared with purchasing each product separately.
